Wallwork Group

Wallwork Group
Complete metal treatment services, Wallwork Group improves the performance of engineering components by heat treatment, case hardening, annealing, plasma coating, carburising, vacuum brazing, coating by physical vapour deposition and more.
Lord Street
Greater Manchester
United Kingdom
T. +44 (0)161 797 9111
F. +44 (0)161 763 1861

Email Wallwork Group

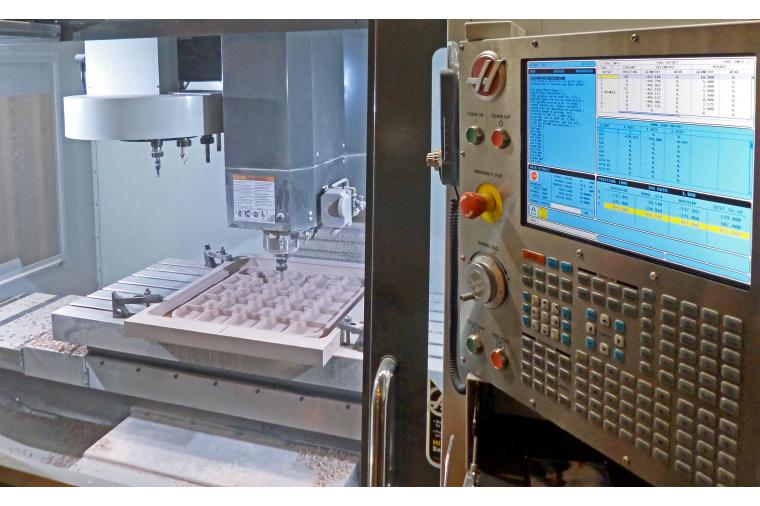

1) The new CNC pattern making system at high temperature castings suppliers, Wallwork Cast Alloys

3 image available

Following the installation of a CNC pattern making system, high temperature castings suppliers, Wallwork Cast Alloys, has slashed the lead time for deliveries. Down from a maximum 18 weeks, bespoke new casting designs can be delivered in as little as two weeks. The increase in speed with which patterns can be made has also reduced the initial cost, making smaller batches of castings more economic and reducing the cash tied up in stock.

The Wallwork foundry makes the baskets, trays and fixtures that they use in their own high temperature heat treatment and vacuum brazing operations. The company also offer this service to other manufactures in hot trades. High strength castings, with low mass, permit target furnace temperatures to be achieved quickly for faster cycle times using less energy. Understanding this means Wallwork can develop more economic and efficient designs that use material economically but retain strength in key areas.

The CNC pattern manufacturing process starts with SolidWorks, a software package that creates a virtual 3D model that can be visualised from any angle. Once the design has been optimised this is converted by the CAD/CAM software into a digital file that is transferred to the CNC milling machine. Working with medium to high density resin board, the machine then mills away all excess material to create a single-piece precision pattern that the foundry can use again and again.

Foundry manager Alex Beck commented, “With the new machine we can respond quickly to customer needs, be more flexible and even more competitive. Patterns made by this method have a good working life, but all designs are stored digitally so we can easily replicate patterns or make modified designs if needed.”

A new brochure is available to guide buyers of high temperature cast alloy furnace furniture and more information can be found on the Wallwork web at


More Information

Simeon Collins, Sales Director, Tel. +44 (0)161 797 9111 Fax. +44 (0)161 763 1861
E-mail: Web:
Wallwork Heat Treatment Ltd, Lord Street, Bury, Greater Manchester, BL9 0RE, UK

Press release issued: June 23, 2016
